X-Bar category

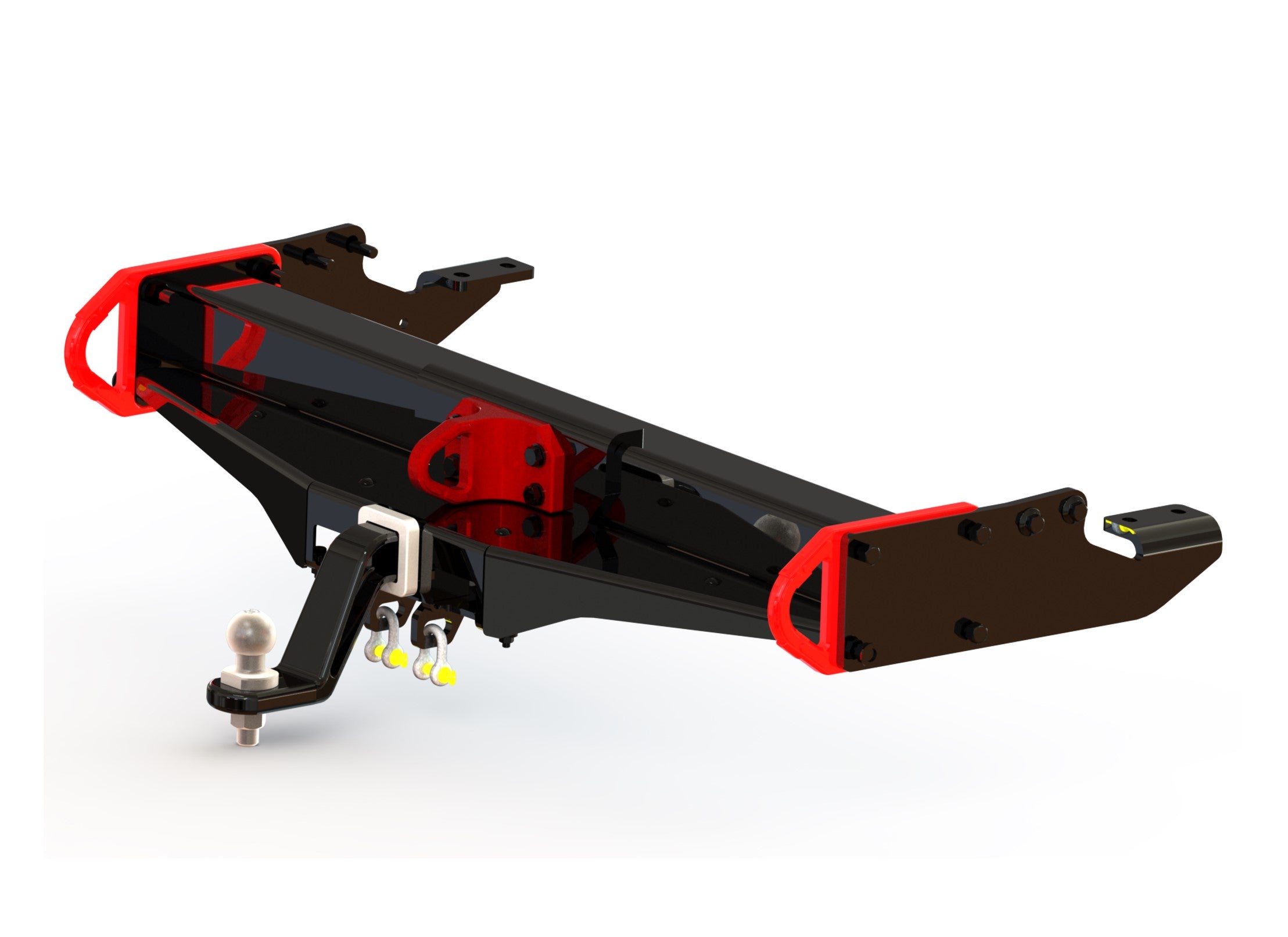

X-Bar to suit Toyota Hilux (2/2005 to 9/2015)

03233RW

With a tow capacity of 2500kg and a ball weight of 250kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road

Towing often requires electrical signals between car and trailer/caravan. This involves wiring (tail) and an ECU (below). Select the ECU and tail that best suits your trailer/caravan.

Fitting

Fits my vehicle Doesn't fit my vehicle
  • Share
Item number: 03233RW
Categories:

Australia wide Installers

NATA Accredited Testing Laboratory

The Toyota Hilux (2/2005 to 9/2015)

A rugged, go-anywhere towbar engineered for off-road. The X-Bar provides an increased departure angle and 3 rated recovery points to get you out of any situation. While practical design elements such as integrated bash plates and protected trailer plug mounting points keep you going when the going gets tough. This X-Bar recovery towbar (Part Number:03233RW) is designed to fit perfectly with your Toyota Hilux (2/2005 to 9/2015) and tested to meet Australian ADR standards. With Hayman Reese Towbars you can be assured that you’re getting the maximum towing capabilities and safety on your travels.

A Rated Recovery Towbar

The Toyota Hilux (2/2005 to 9/2015) X-Bar has a towing capacity of 2500kg with a ball weight of 250kg. The X-Bar comes with a rated 8 tonne centre recovery point and two rated 4 tonne side recovery points. Whenever you are recovering a vehicle that's stuck always make sure you use a rated recovery point as using other methods may cause damage or injury. The X-Bar also has a number of features beneficial to offroad travelling including quick release cover protecting plug points, designed to suit your vehicle, Twin protected trailer socket mount points, SmartPin™ hitch pin, premium eCoat & powder-coat finish and rated D-shackles.

Superior Construction

The X-Bar is designed to maximise towing ability and allow you to safely recover your or a mates vehicle. The 03233RW X-Bar Recovery Towbar includes increased thickness sidearm and custom forged 700-grade steel recovery points and towball mount. The X-Bar has been designed using advanced FEA (Finite Element Analysis) technology and tested to Australian Standards AS/4177 and ADR 62/02 in a dedicated NATA accredited Laboratory at Hayman Reese’s Melbourne Production Facility for both towing strength and recovery ability.

Born from a need for; improved departure angles, maximum tow ratings and rear recovery points, the X-Bar is equipped to handle any off-road situation.

Towbar Rating 2500kg
Ball Weight 250kg
Bumper Cut No
Product Weight 73.4kg
Product Dimensions 102 x 36 x 20cm
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Warranty limited lifetime warranty
Tail Length 1800mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21359
