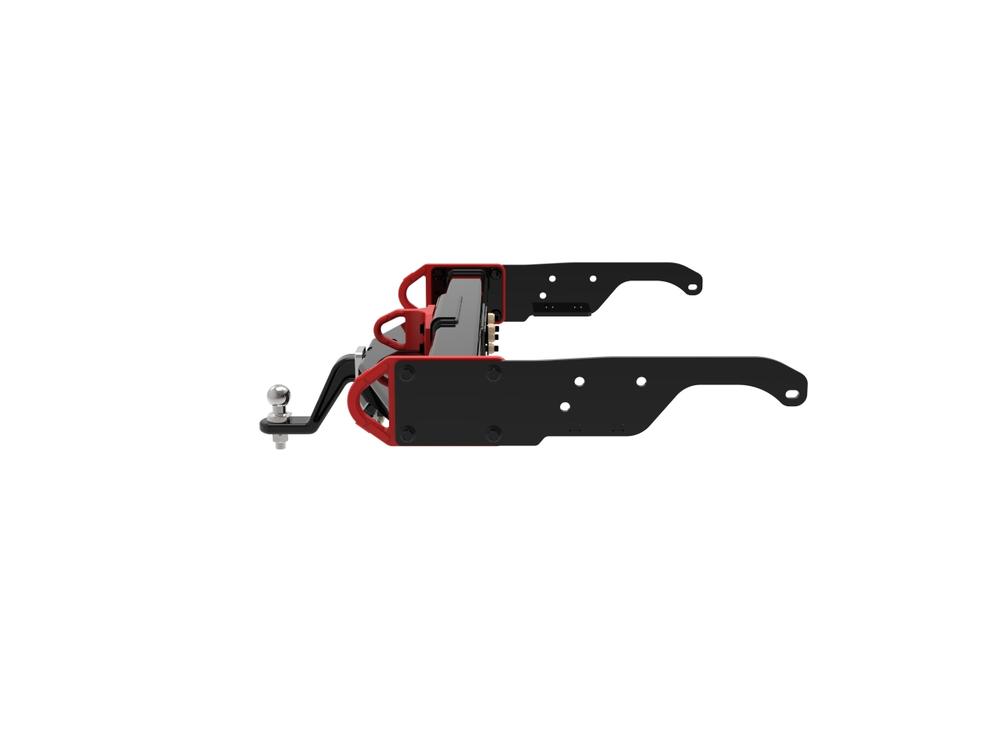

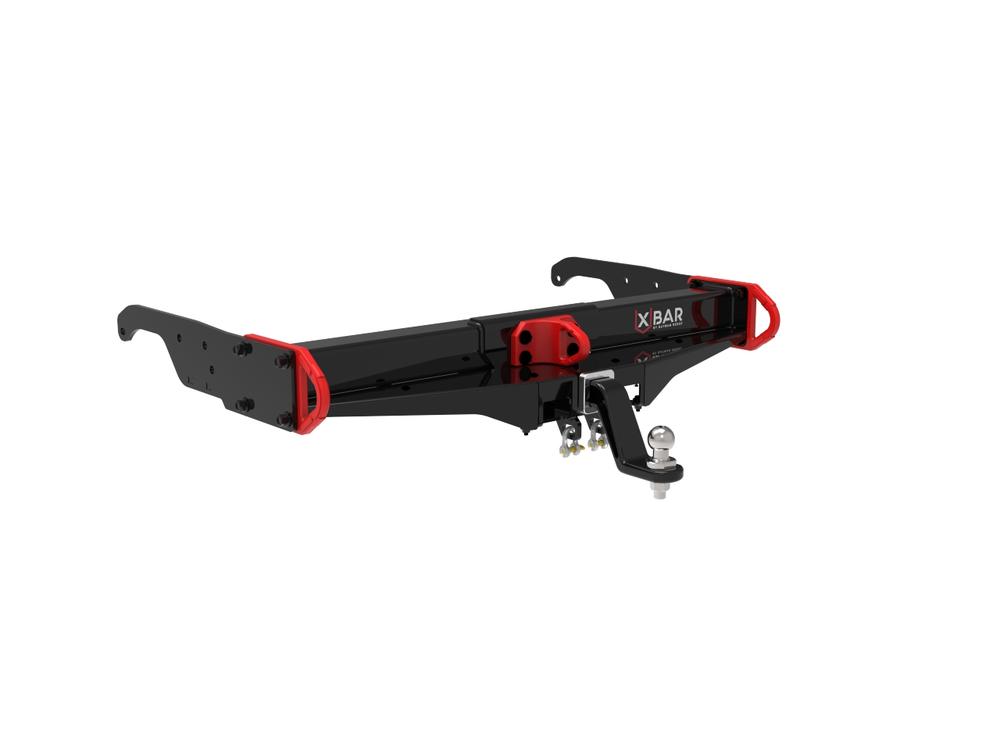

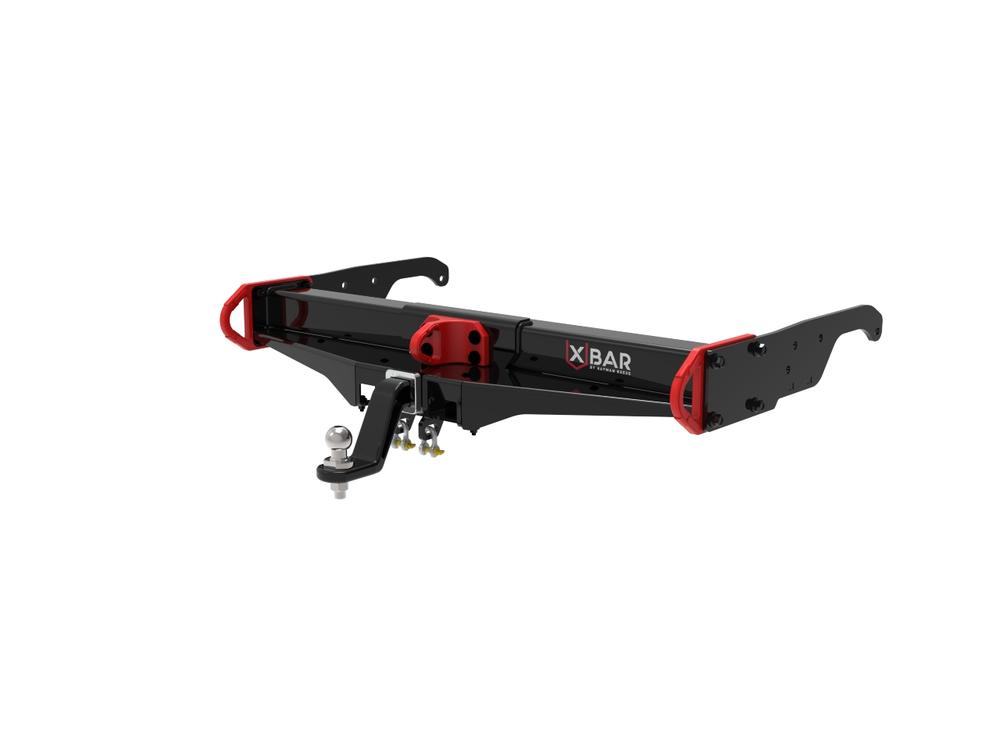

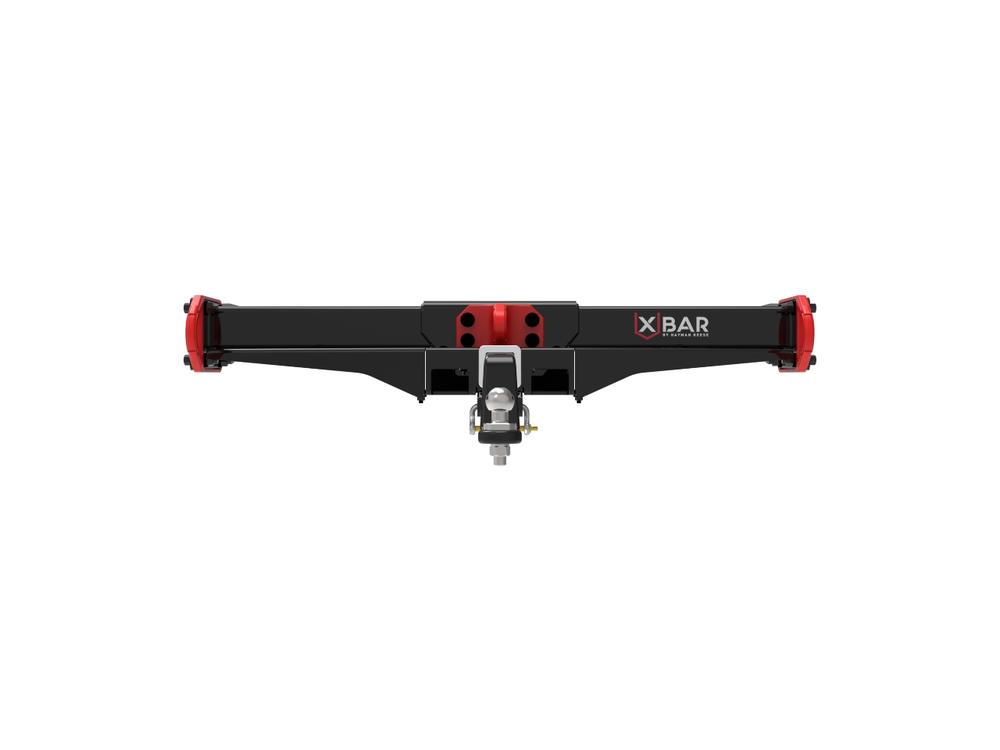

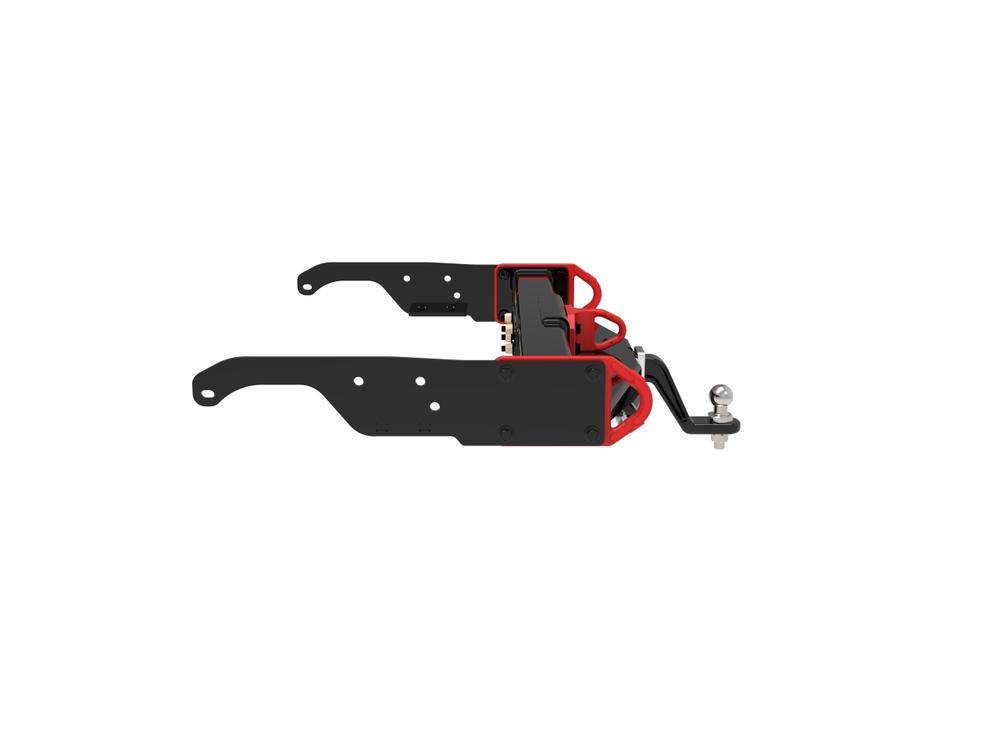

X-Bar to suit Ford Ranger PX III (8/2015 to 5/2022)


With a tow capacity of 3500kg and a ball weight of 350kg the X-Bar is designed specifically for vehicle recovery with 3 rated rear recovery points (sides 4,000kg each, centre 8,000kg). The X-Bar has improved departure angles and includes an integrated bash plate and twin protected trailer plugs for travelling off-road

Fits my vehicle Doesn't fit my vehicle
  • Share
Item number: 03362XW

Australia wide Installers

NATA Accredited Testing Laboratory

The Ford Ranger PX III C/C (8/2015 on)

A rugged, go-anywhere towbar engineered for off-road. The X-Bar provides an increased departure angle and 3 rated recovery points to get you out of any situation. While practical design elements such as integrated bash plates and protected trailer plug mounting points keep you going when the going gets tough. This X-Bar recovery towbar (Part Number:03362XW) is designed to fit perfectly with your Ford Ranger PX III C/C (8/2015 on) and tested to meet Australian ADR standards. With Hayman Reese Towbars you can be assured that you’re getting the maximum towing capabilities and safety on your travels.

A Rated Recovery Towbar

The Ford Ranger PX III C/C (8/2015 on) X-Bar has a towing capacity of 3500kg with a ball weight of 350kg. The X-Bar comes with a rated 8 tonne centre recovery point and two rated 4 tonne side recovery points. Whenever you are recovering a vehicle that's stuck always make sure you use a rated recovery point as using other methods may cause damage or injury. The X-Bar also has a number of features benefitial to offroad travelling including twin protected trailer socket mount points, SmartPin™ hitch pin, premium eCoat & powder-coat finish and rated D-shackles.

Superior Construction

The X-Bar is designed to maximise towing ability and allow you to safely recover your or a mates vehicle. The 03362XW X-Bar Recovery Towbar includes increased thickness sidearm, high tensile Australian Standard grade 10.9 fasteners and custom forged 700-grade steel recovery points and towball mount. The X-Bar has been designed using advanced FEA (Finite Element Analysis) technology and tested to Australian Standards AS/4177 and ADR 62/02 in a dedicated NATA accredited Laboratory at Hayman Reese’s Melbourne Production Facility for both towing strength and recovery ability.

Born from a need for; improved departure angles, maximum tow ratings and rear recovery points, the X-Bar is equipped to handle any off-road situation.

Towbar Rating 3500kg
Ball Weight 350kg
Bumper Cut No
Product Weight 73.1kg
Product Dimensions 102 x 36 x 20cm
SmartCODE Compatible Yes
Installation Required Yes
Finish Powder coated
Warranty limited lifetime warranty
Notes Suit Cab Chassis variants of Ford Ranger. Supports OEM towing functionality when coded with the Hayman Reese SmartCODE handset Vehicle operators must refer owners manual to determine exact vehicle changes enabled or disabled when towing.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21359
