Weight Distribution Hitches category

Weight Distribution Hitch (600lb/275kg) - 28inch spring bars (no shank)

76002F-NS

Helps to distribute the ball weight of your caravan evenly across the axles of your vehicle and trailer. The hitch comes with 28-inch truncated spring bars that provide more clearance for 6-inch chassis rails and other A-frame fixtures. Does not include shank.

$768.00 (RRP)
  • Share
Item number: 76002F-NS

Australia Wide Installers

NATA Accredited Testing Laboratory

Overview Specifications

Same as 76002F but not including adjustable shank, this allows the use of a different shank size. Hayman Reese's classic Weight Distribution kit comes equipped with all you need to restore natural balance of your tow vehicle, suspension and steering geometry. Suitable for ball weights between 135 kg and 275 kg, the Hayman Reese 600 lb classic Weight Distribution kit comes with trunnion style spring bars that are ideal for trailers and caravans that have a 4” A-frame, with the coupling mounted on the top, or with a 5” and 6” A-frame, with the coupling mounted on the bottom.

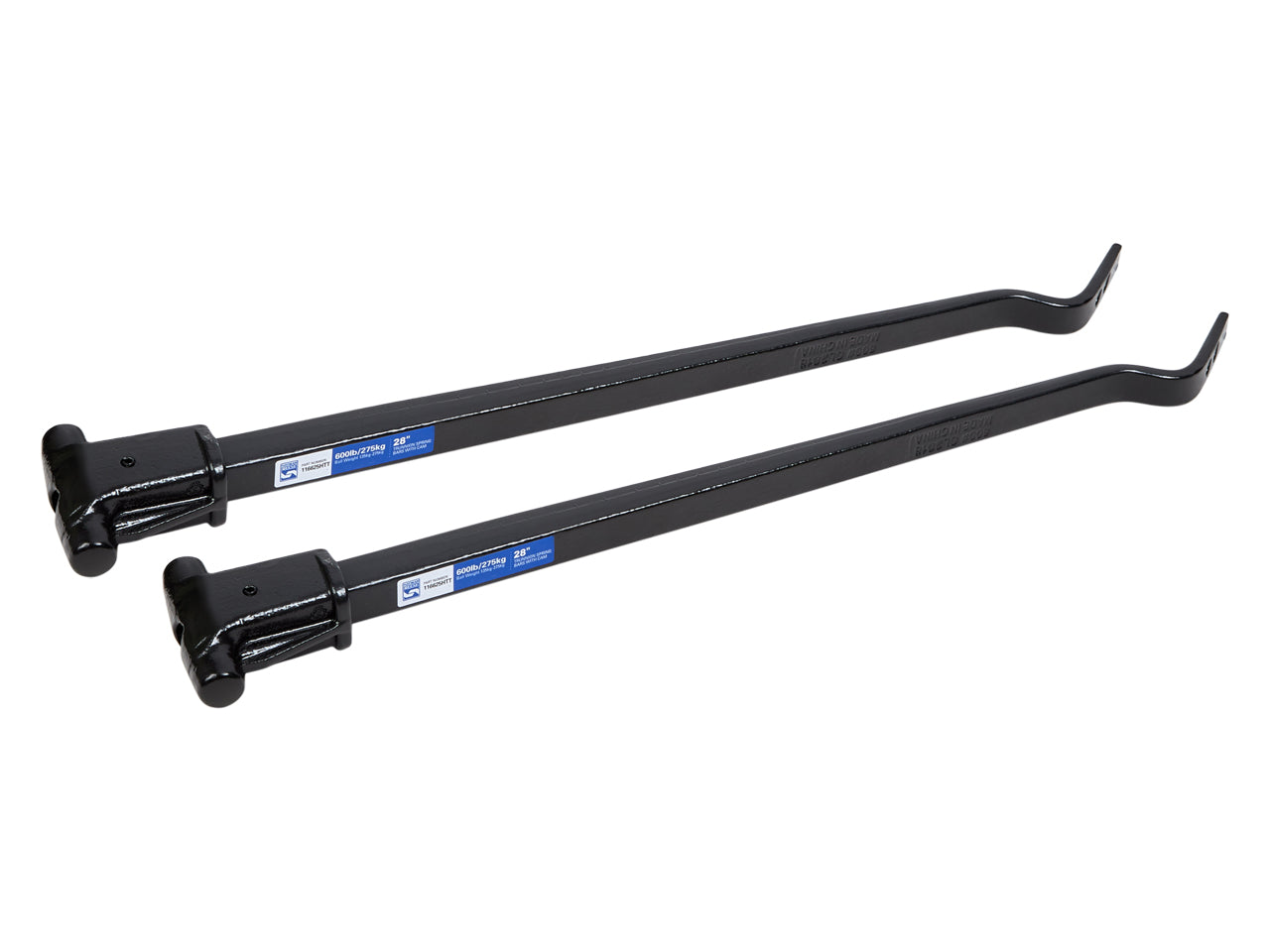

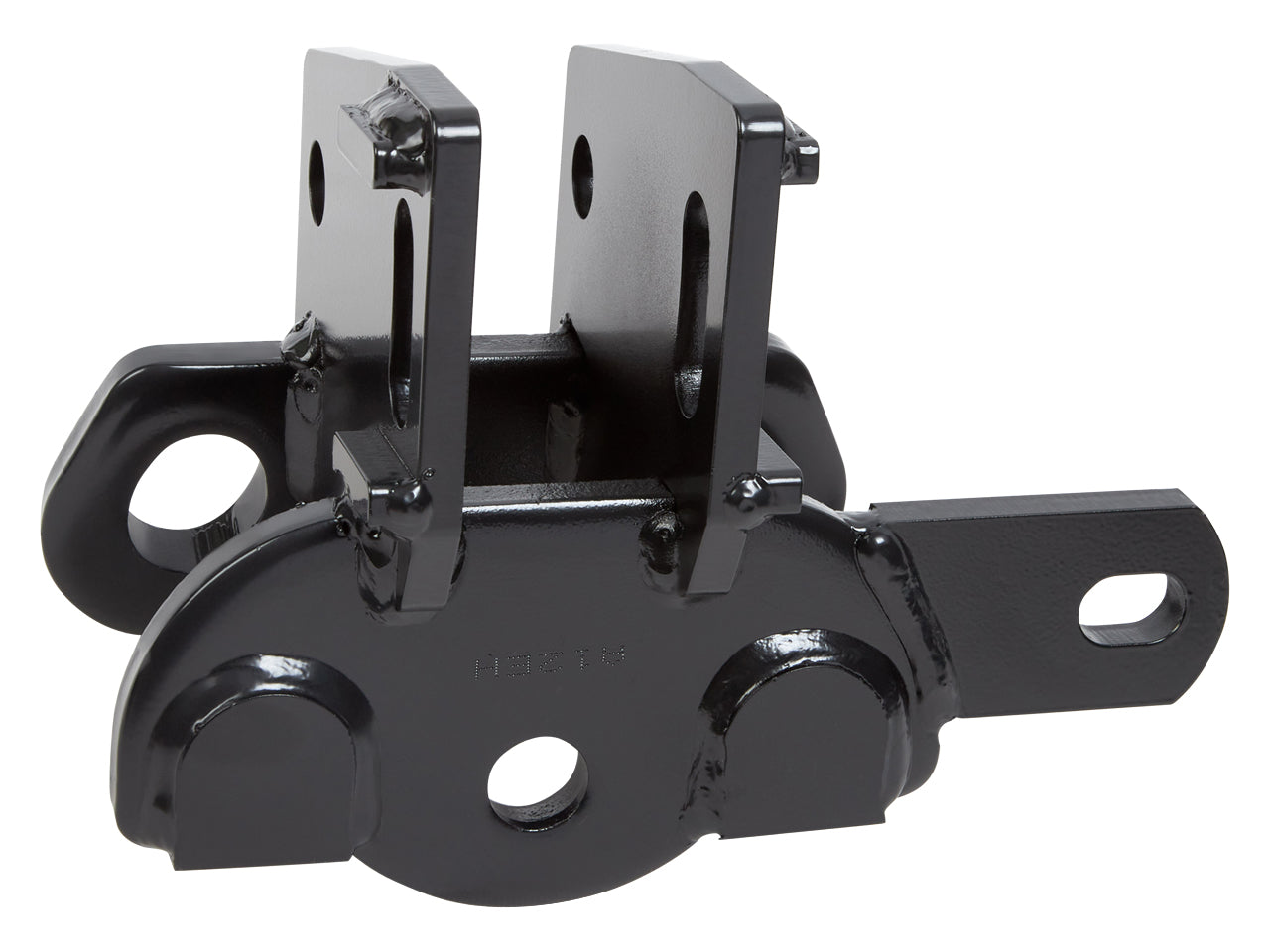

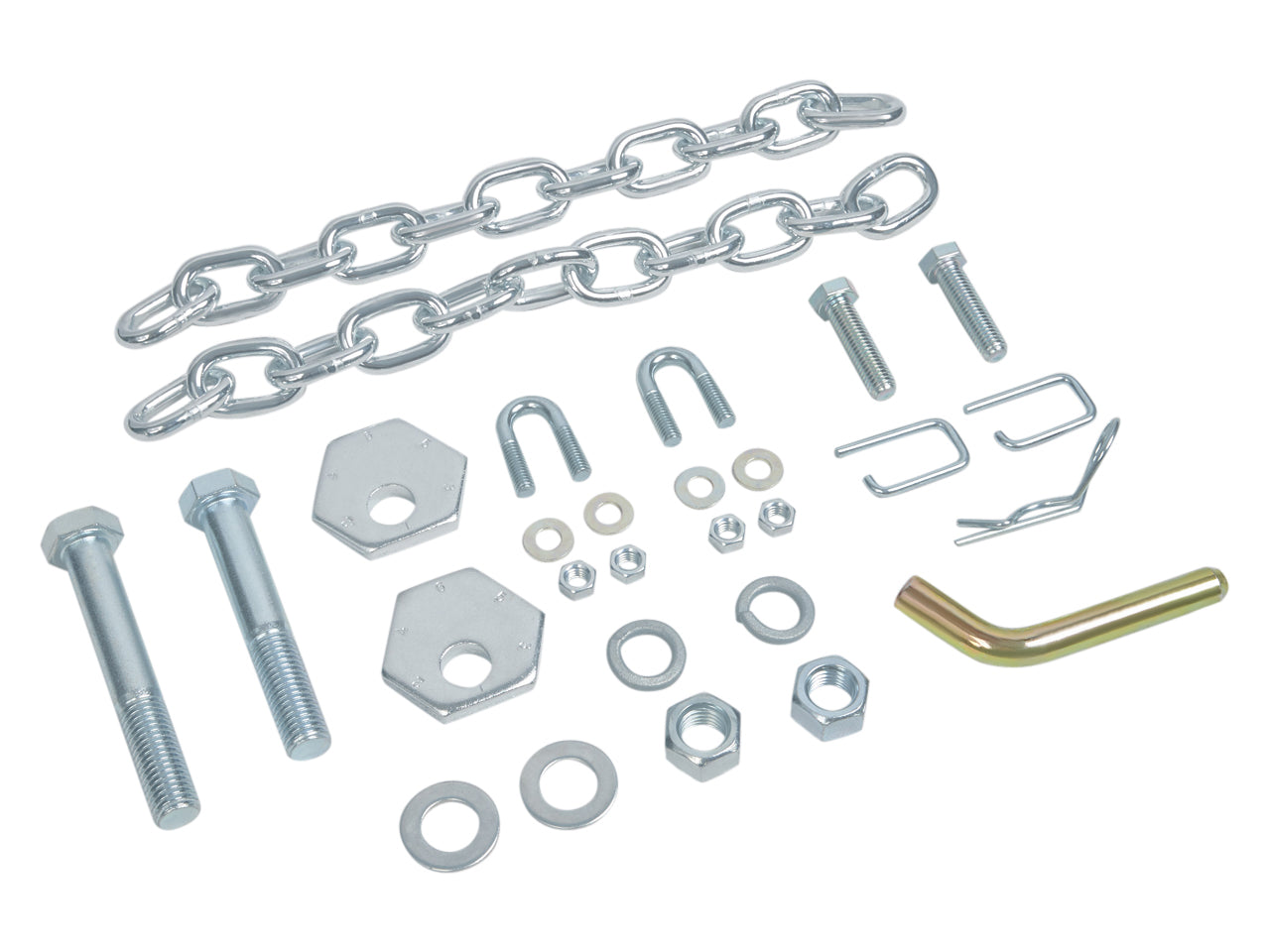

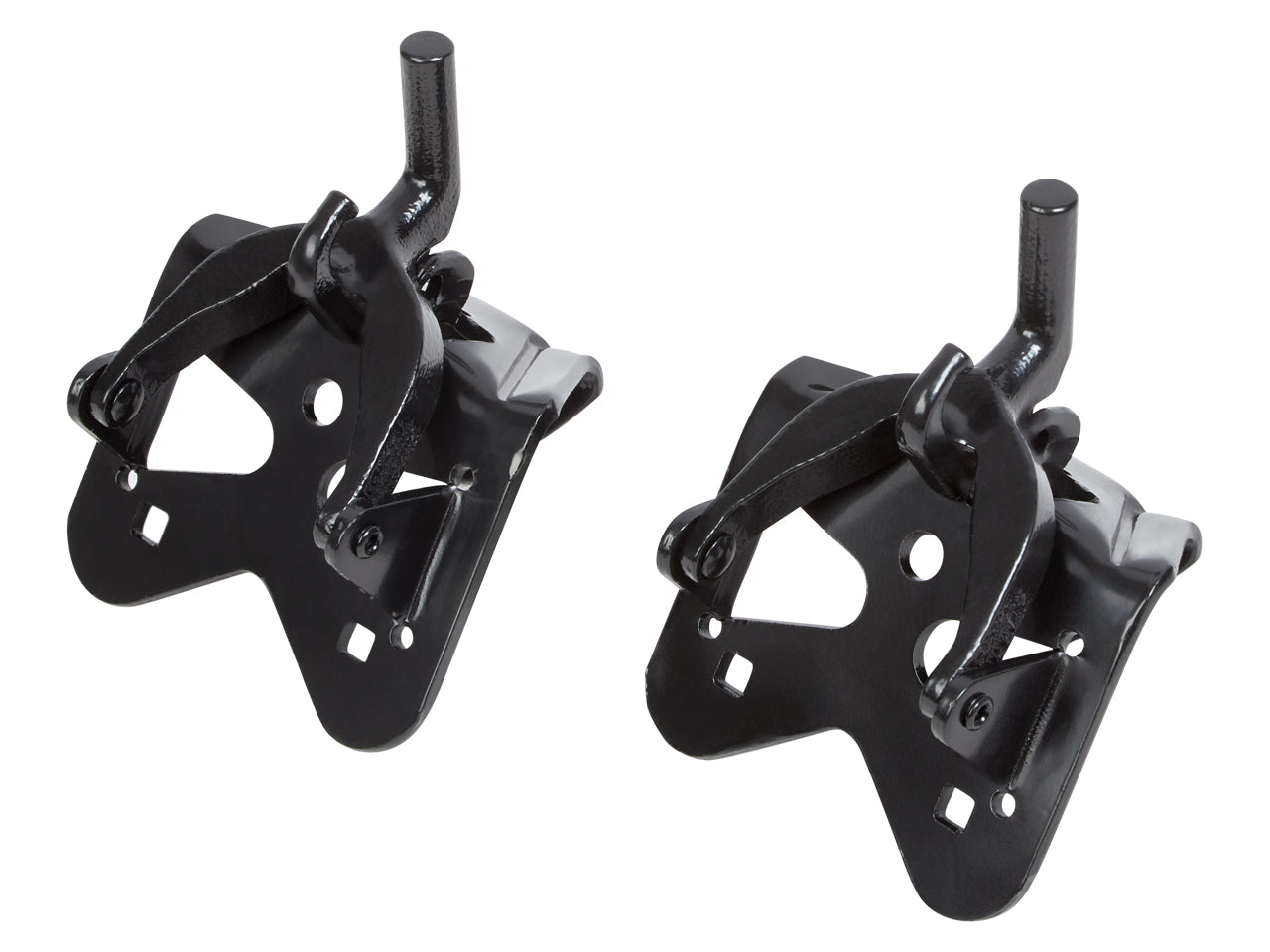

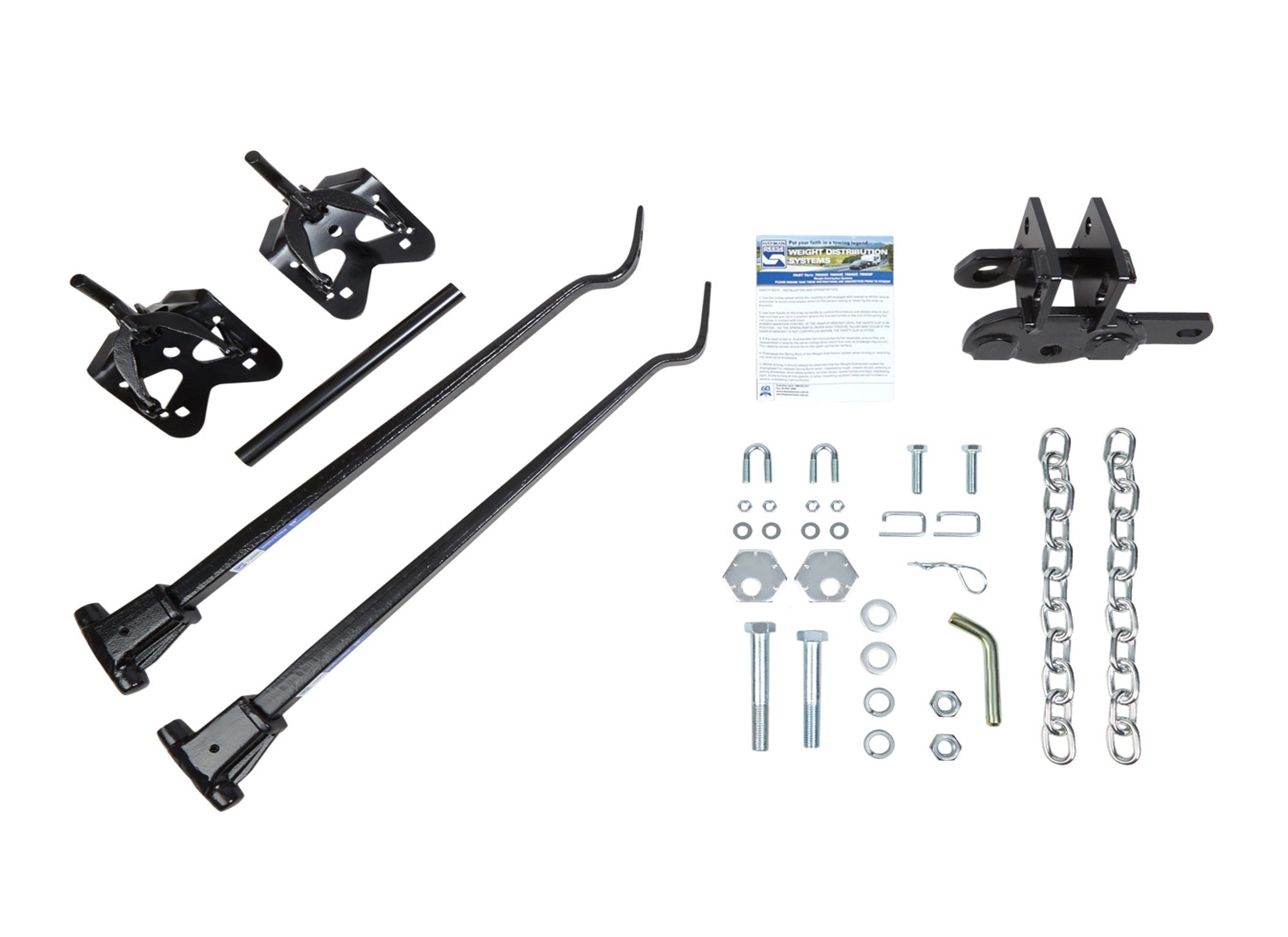

Weight Distribution Hitch (600lb/275kg) - 28inch spring bars (no shank) #76002F-NS kit includes Head, spring bars, snap up brackets, snap up bar, chains and fitting kit

Product Weight 28.8kg
Product Dimensions 88 x 25 x 18.5cm
Installation Required Yes
Finish Powder coated
Notes Maximum rating of 350kg/3500kg
Colour black
Fitting Difficulty DIY Friendly
