Truck Towbar (Class 5) to suit Isuzu N Series (1/2020 on)

MCL5A-1003

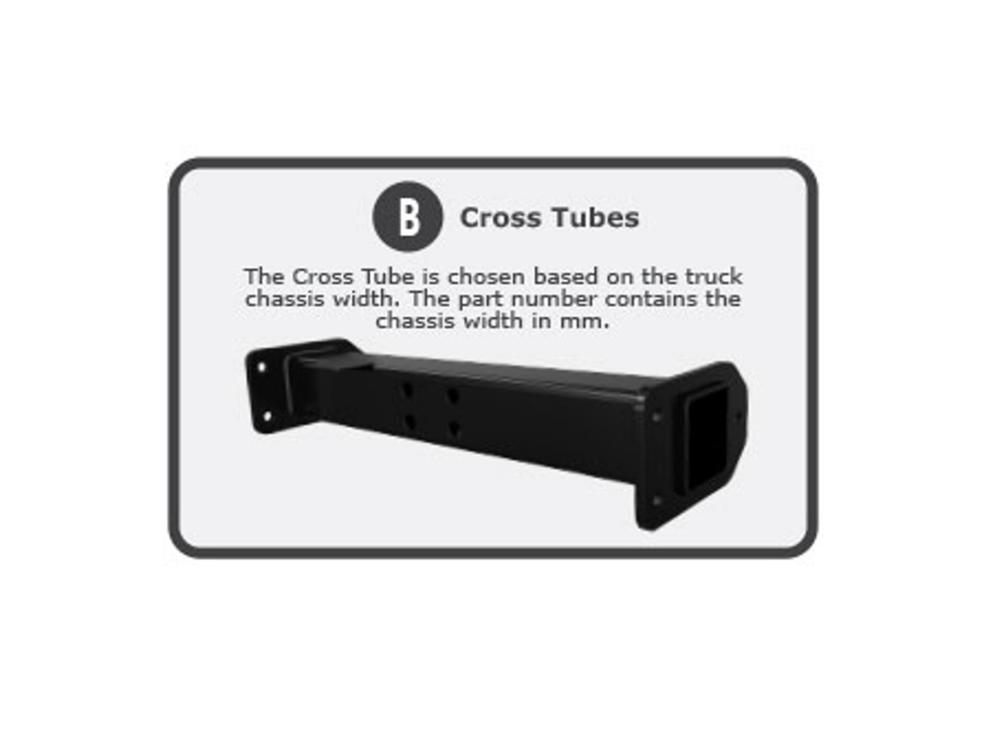

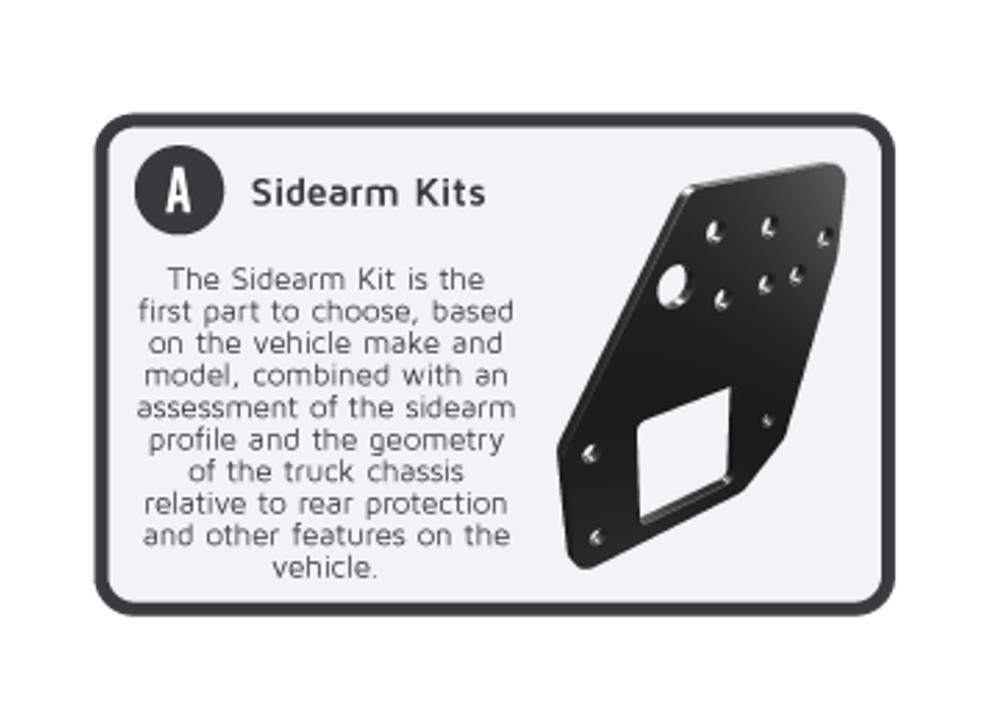

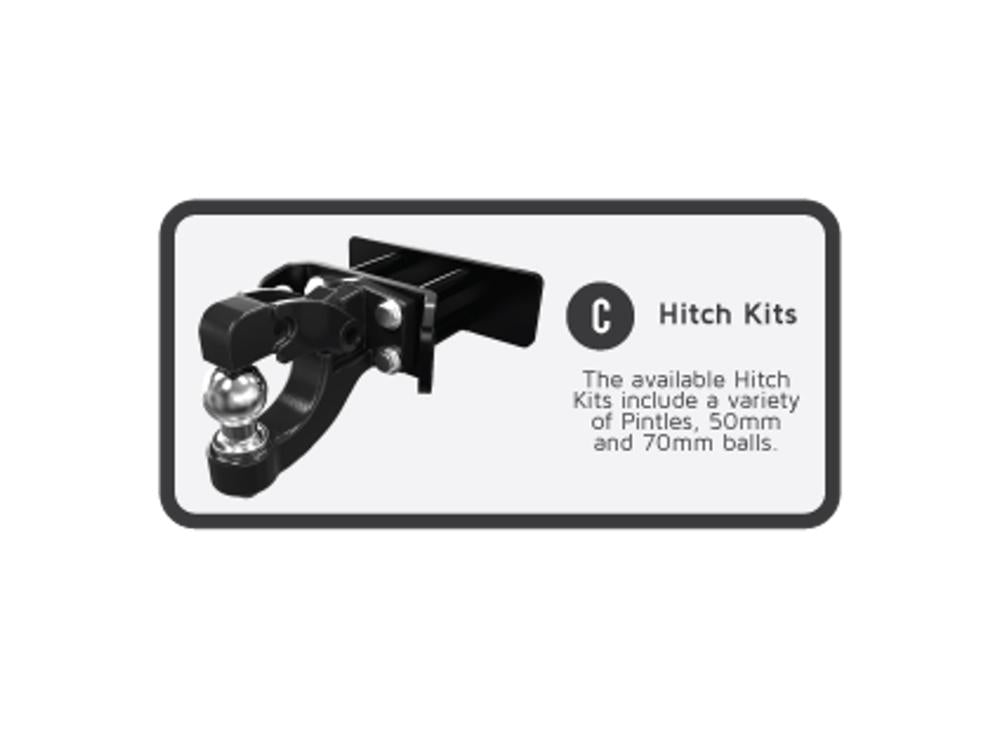

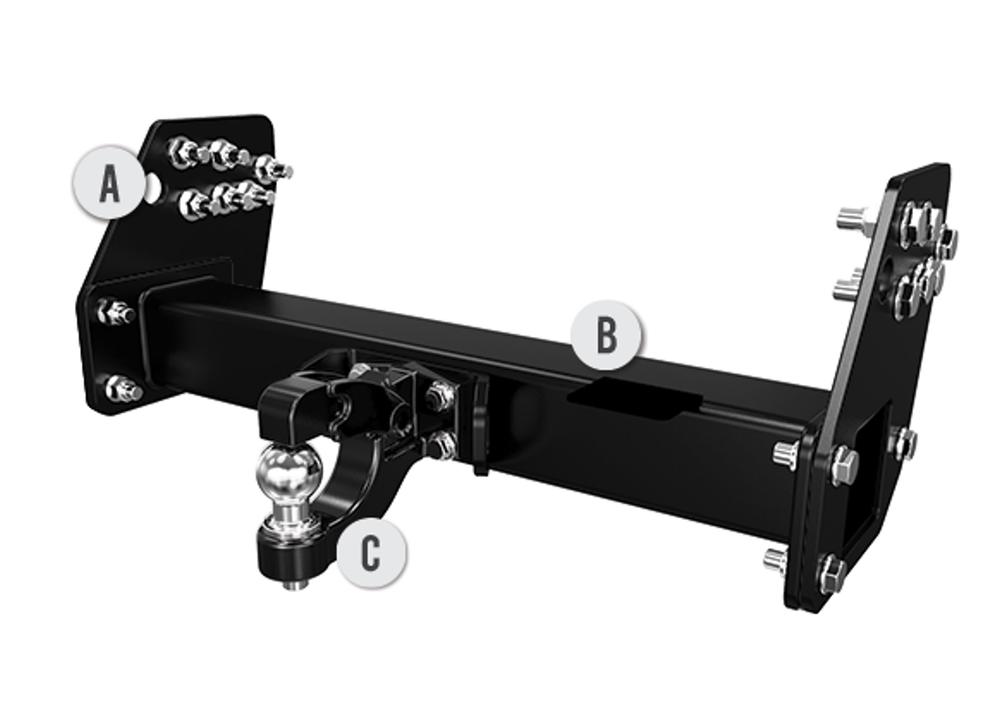

The new Modular Class 5 Towbars are a fully bolted, custom fit bar, requiring no welding. Choosing your towbar is now as easy as A, B, C, allowing you to pick and choose from a variety of sidearms, cross tubes, and hitch kits to suit your customer’s truck and towing needs. All bars come fully wired with a wiring solution patch.

  • Share
Item number: MCL5A-1003
Categories:

Australia wide Installers

NATA Accredited Testing Laboratory

Made for Truck Towbar (Class 5) to suit Isuzu N Series (1/2020 on)

A Hayman Reese towbar is a high-quality upgrade to your vehicle that allows you to tow caravans, trailers, boats and more with maximum safety. This Towbar (Part Number: MCL5A-1003) is designed to fit perfectly with your Truck Towbar (Class 5) to suit Isuzu N Series (1/2020 on) and tested to meet Australian ADR standards. With Hayman Reese Towbars you can be assured that you’re getting the maximum towing capabilities and safety on your travels.

What can it tow?

The Truck Towbar (Class 5) to suit Isuzu N Series (1/2020 on) heavy duty (Class 4) towbar has a towing capacity of 3500kg and is specifically designed for towing caravans, large trailers, boats or horse floats. Ensure that when carrying bike racks and other items with vertical force on the towbar that you check the owners handbook for weight limits.

How will my towbar look

This towbar has a black powdercoat finish. The hitch receiver is a standard 50mm square receiver, with chrome hitch collar and comes standard with a removable Tow Ball Mount (TBM), 50mm tow ball and rated D-shackles. When you’re not towing, simply remove the retaining clip and hitch pin and the Trailer Ball Mount slides straight out.

Safe Towing

Hayman Reese towbars are designed to be compatible with Weight Distribution systems, used to safely tow Caravans and large loads, along with hitch mounted accessories such as bike racks and platforms. They come standard with a tow ball but also work with a DO35 Pin and off-road coupling.

Superior Construction

Hayman Reese towbars are designed to maximise towing ability. The MCL5A-1003 Heavy Duty (Class 4) Towbar has been designed using advanced FEA (Finite Element Analysis) technology and tested in a dedicated NATA accredited Laboratory at Hayman Reese’s Melbourne Production Facility. This gives us the confidence to provide a lifetime warranty on the towbar for you as the original owner.

Whether you’re taking a caravan around Australia, going on a camping trip, a fishing adventure, a family holiday or need to tow for work, we'll keep you connected and help you get there safely.

Bumper Cut No
Product Weight 18.28kg
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Notes A Cross Tube and Hitch Kit are required to complete installation. Check Fitting Instruction to ensure ball height meets requirements. Hitch MAY contact tail gate during tipping. Tail not included.
Tail Length 400mm
Colour black
Hitch Type 50mm square hitch receiver
