Heavy Duty category

Towbar to suit Volvo Xc90 (7/2003 to 2/2015)

02040RW

With a tow capacity of 2250kg and a ball weight of 225kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has a concealed design and requires a bumper cut. The Towbar has a removable Tow ball mount (TBM) with 50mm tow ball, rated D-shackles and Smart Pin all included.

Towing often requires electrical signals between car and trailer/caravan. This involves wiring (tail) and an ECU (below). Select the ECU and tail that best suits your trailer/caravan.

Fitting

Fits my vehicle Doesn't fit my vehicle
  • Share
Item number: 02040RW
Categories:

Australia wide Installers

NATA Accredited Testing Laboratory

Made for Volvo Xc90 (7/2003 to 2/2015)



A Hayman Reese towbar is a high-quality upgrade to your vehicle that allows you to tow caravans, trailers, boats and more with maximum safety. This Towbar (Part Number:02040RW) is designed to fit perfectly with your Volvo Xc90 (7/2003 to 2/2015) and tested to meet Australian ADR standards. With Hayman Reese Towbars you can be assured that you’re getting the maximum towing capabilities and safety on your travels.



What can it tow?



The Volvo Xc90 (7/2003 to 2/2015) heavy duty (Class 4) towbar has a towing capacity of 2250kg with a ball weight of 225kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. Ensure that when carrying bike racks and other items with vertical force on the towbar that you check the owners handbook for weight limits.



How will my towbar look

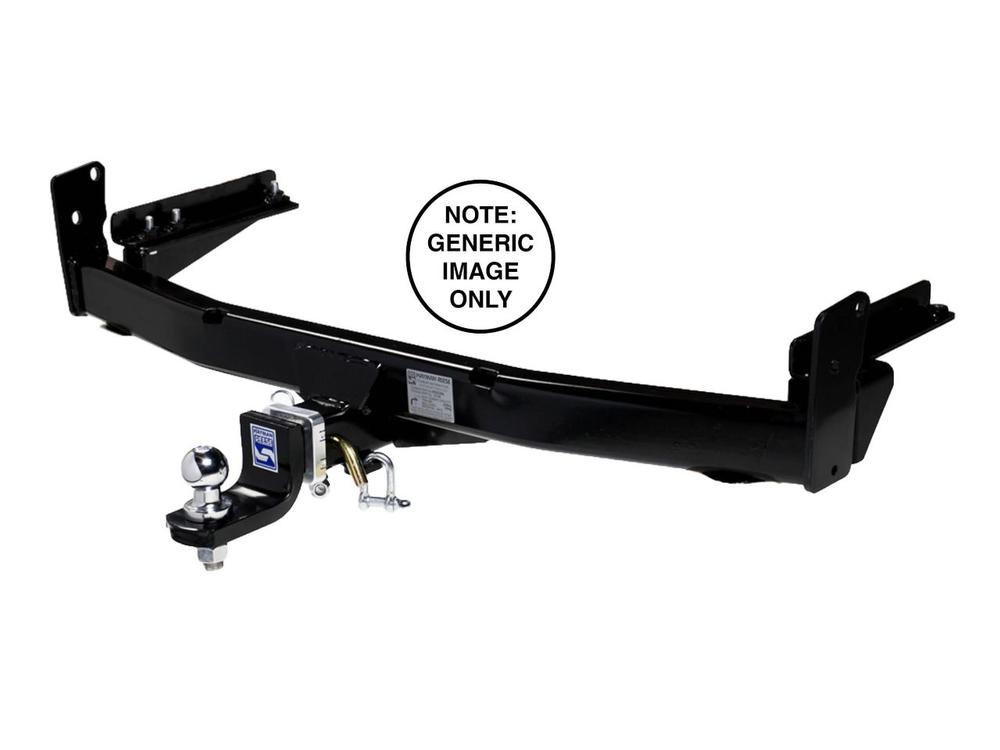

This towbar has a black powdercoat finish and a concealed design which hides the majority of the bar from view, with only a hitch receiver visible. The hitch receiver is a standard 50mm square receiver, with chrome hitch collar and comes standard with a removable Tow Ball Mount (TBM), 50mm tow ball and rated D-shackles. When you’re not towing, simply remove the retaining clip and hitch pin and the Trailer Ball Mount slides straight out.



Safe Towing



Hayman Reese towbars are designed to be compatible with Weight Distribution systems, used to safely tow Caravans and large loads, along with hitch mounted accessories such as bike racks and platforms. They come standard with a tow ball but also work with a DO35 Pin and off-road coupling.



Superior Construction



Hayman Reese towbars are designed to maximise towing ability. The 02040RW Heavy Duty (Class 4) Towbar has been designed using advanced FEA (Finite Element Analysis) technology and tested in a dedicated NATA accredited Laboratory at Hayman Reese’s Melbourne Production Facility. This gives us the confidence to provide a lifetime warranty on the towbar for you as the original owner.



Whether you’re taking a caravan around Australia, going on a camping trip, a fishing adventure, a family holiday or need to tow for work, we'll keep you connected and help you get there safely.

Towbar Rating 2250kg
Ball Weight 225kg
Bumper Cut Yes
Product Weight 16kg
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Warranty limited lifetime warranty
Notes Suits 2.5T, 3.2, T6 & D5.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Concealed
LUG 21126
