Heavy Duty category

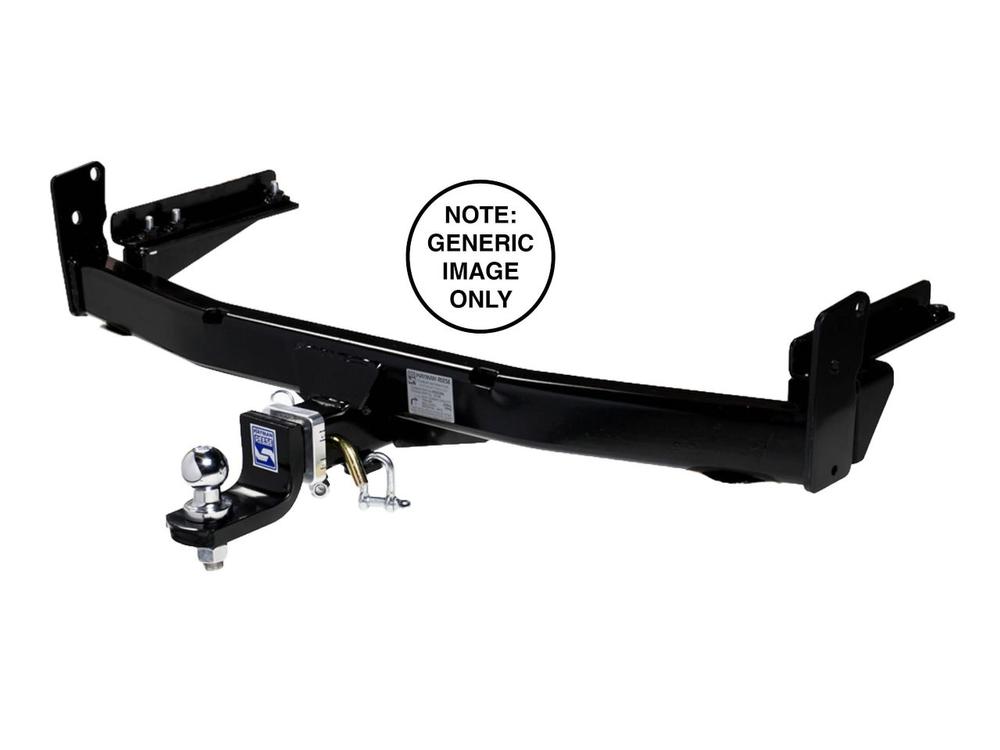

Towbar to suit Hyundai Santa Fe (9/2012 to 10/2015)


With a tow capacity of 2500kg and a ball weight of 150kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. This towbar has an exposed design and requires a bumper cut. The Towbar has a removable Tow ball mount (TBM) with 50mm tow ball, rated D-shackles and Smart Pin all included.

Fits my vehicle Doesn't fit my vehicle
  • Share
Item number: 02967RW

Australia wide Installers

NATA Accredited Testing Laboratory

Made for Hyundai Santa Fe (9/2012 to 10/2015)

A Hayman Reese towbar is a high-quality upgrade to your vehicle that allows you to tow caravans, trailers, boats and more with maximum safety. This Towbar (Part Number:02967RW) is designed to fit perfectly with your Hyundai Santa Fe (9/2012 to 10/2015) and tested to meet Australian ADR standards. With Hayman Reese Towbars you can be assured that you’re getting the maximum towing capabilities and safety on your travels.

What can it tow?

The Hyundai Santa Fe (9/2012 to 10/2015) heavy duty (Class 4) towbar has a towing capacity of 2500kg with a ball weight of 150kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. Ensure that when carrying bike racks and other items with vertical force on the towbar that you check the owners handbook for weight limits.

How will my towbar look

This towbar has a black powdercoat finish and an exposed design. The hitch receiver is a standard 50mm square receiver, with chrome hitch collar and comes standard with a removable Tow Ball Mount (TBM), 50mm tow ball and rated D-shackles. When you’re not towing, simply remove the retaining clip and hitch pin and the Trailer Ball Mount slides straight out.

Safe Towing

Hayman Reese towbars are designed to be compatible with Weight Distribution systems, used to safely tow Caravans and large loads, along with hitch mounted accessories such as bike racks and platforms. They come standard with a tow ball but also work with a DO35 Pin and off-road coupling.

Superior Construction

Hayman Reese towbars are designed to maximise towing ability. The 02967RW Heavy Duty (Class 4) Towbar has been designed using advanced FEA (Finite Element Analysis) technology and tested in a dedicated NATA accredited Laboratory at Hayman Reese’s Melbourne Production Facility. This gives us the confidence to provide a lifetime warranty on the towbar for you as the original owner.

Whether you’re taking a caravan around Australia, going on a camping trip, a fishing adventure, a family holiday or need to tow for work, we'll keep you connected and help you get there safely.

Towbar Rating 2500kg
Ball Weight 150kg
Bumper Cut Yes
Product Weight 32.96kg
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Warranty limited lifetime warranty
Notes Ball weight can be increased to 150 only when using heavy duty tow Hyundai Load assist package. Please refer Hyundai dealer.
Tail Length 1200mm
Colour black
Hitch Type 50mm square hitch receiver
Exposed/Concealed Fitment Exposed
LUG 21161
