Light Duty category

Towbar to suit Ford Territory (4/2004 to 10/2016)

02023W

The light duty towbar is rated up to 1600kg and a ball weight of 160kg and is a designed for light towing and mounting bike racks. This towbar has a concealed design and requires a bumper cut. The Towbar comes with a standard bolt on tongue with 50mm tow ball, rated D-shackles and Smart Pin all included.

Fits my vehicle Doesn't fit my vehicle
  • Share
Item number: 02023W
Categories:

Australia wide Installers

NATA Accredited Testing Laboratory

Made for Ford Territory (4/2004 to 10/2016)



A Hayman Reese towbar is a high-quality upgrade to your vehicle that allows towing of light loads and mounting bike racks. This Towbar (Part Number:02023W) is designed to fit perfectly with your Ford Territory (4/2004 to 10/2016) and tested to meet Australian ADR standards. With Hayman Reese Towbars you can be assured that you’re getting the maximum towing capabilities and safety on your travels.



What can it tow?



The Ford Territory (4/2004 to 10/2016) light duty towbar (Class 2) has a towing capacity of 1600kg with a ball weight of 160kg this towbar is specifically designed for towing light loads and accessories such as bike racks. Ensure that when carrying bike racks and other items with vertical force on the towbar that you check the owners handbook for weight limits.



How will my towbar look

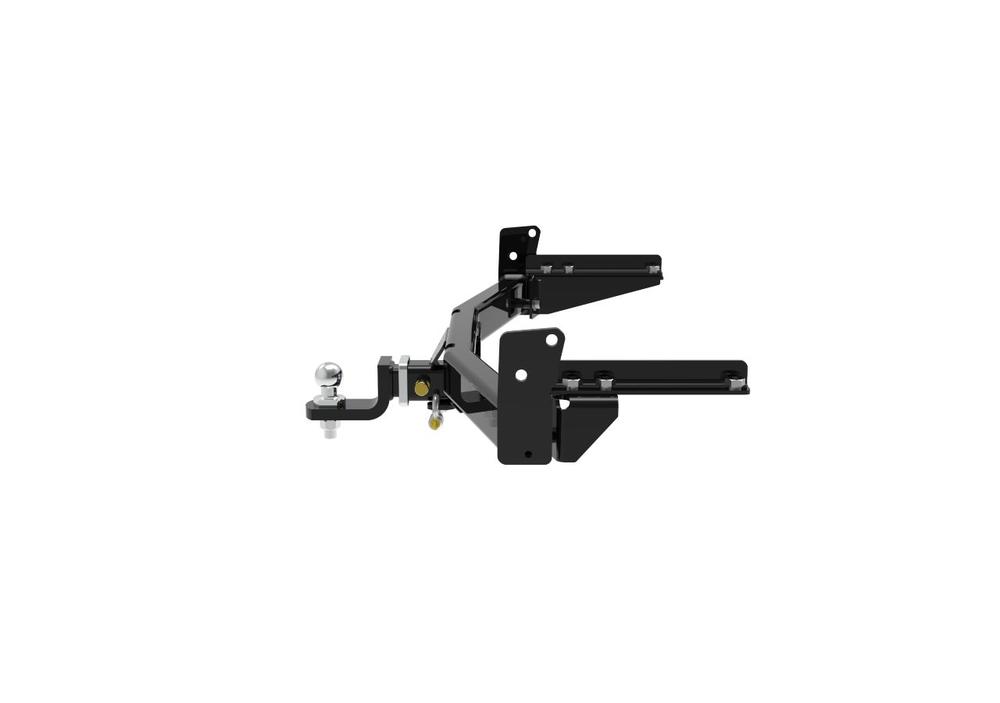

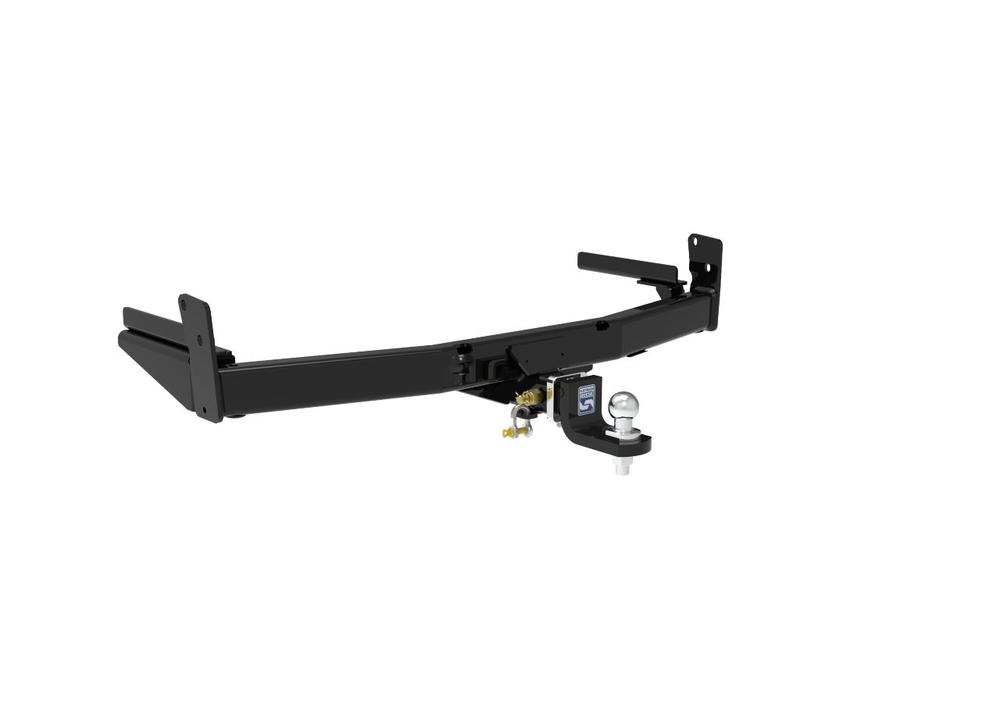

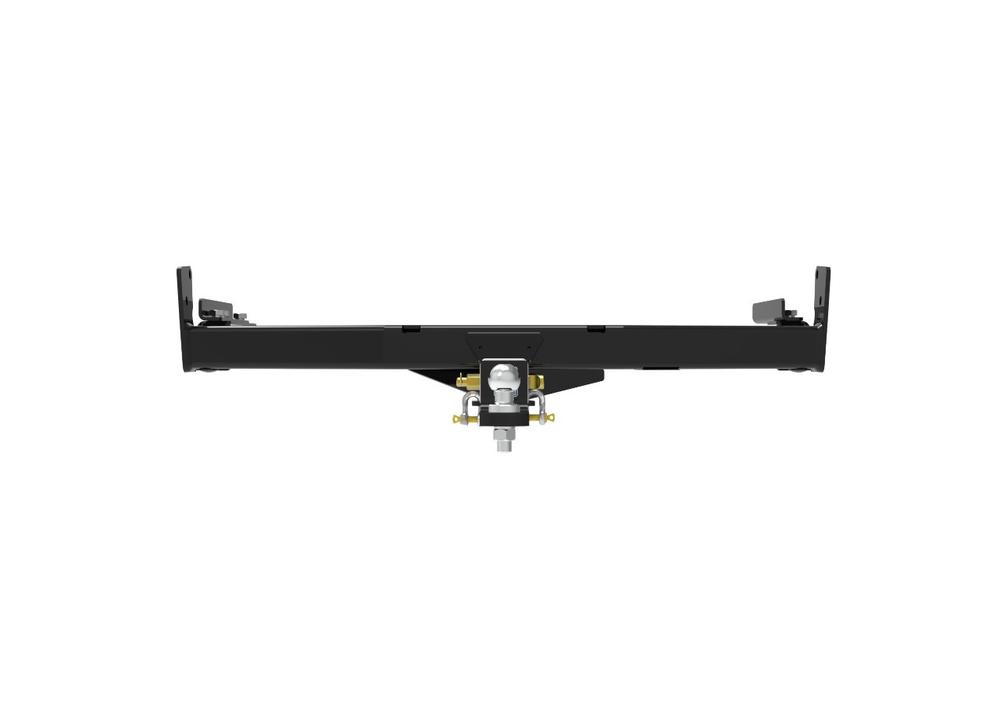

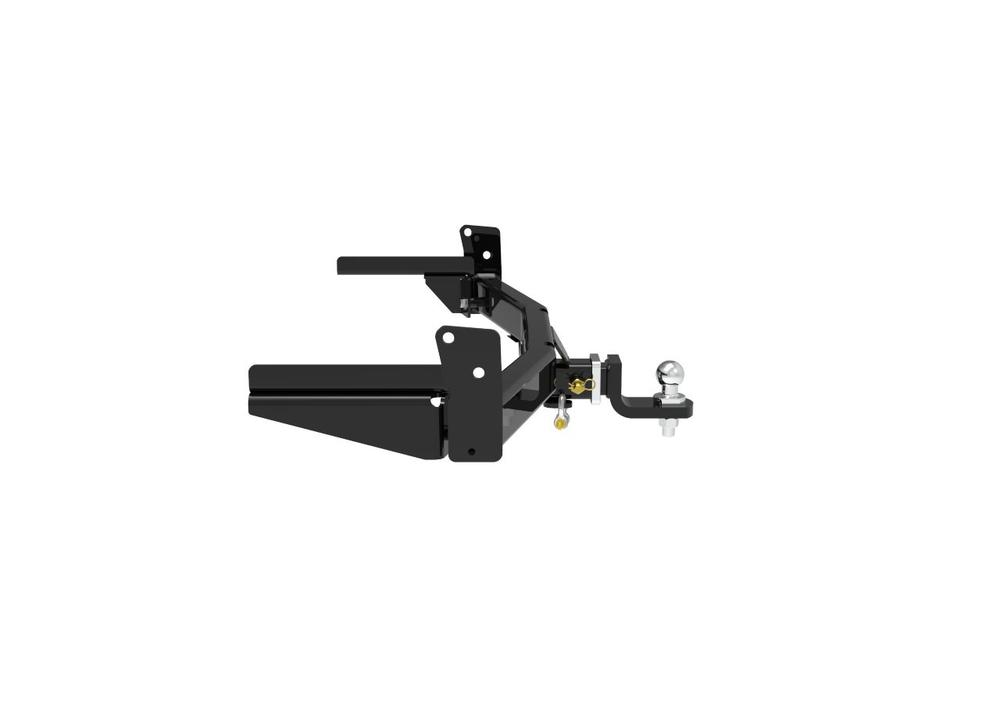

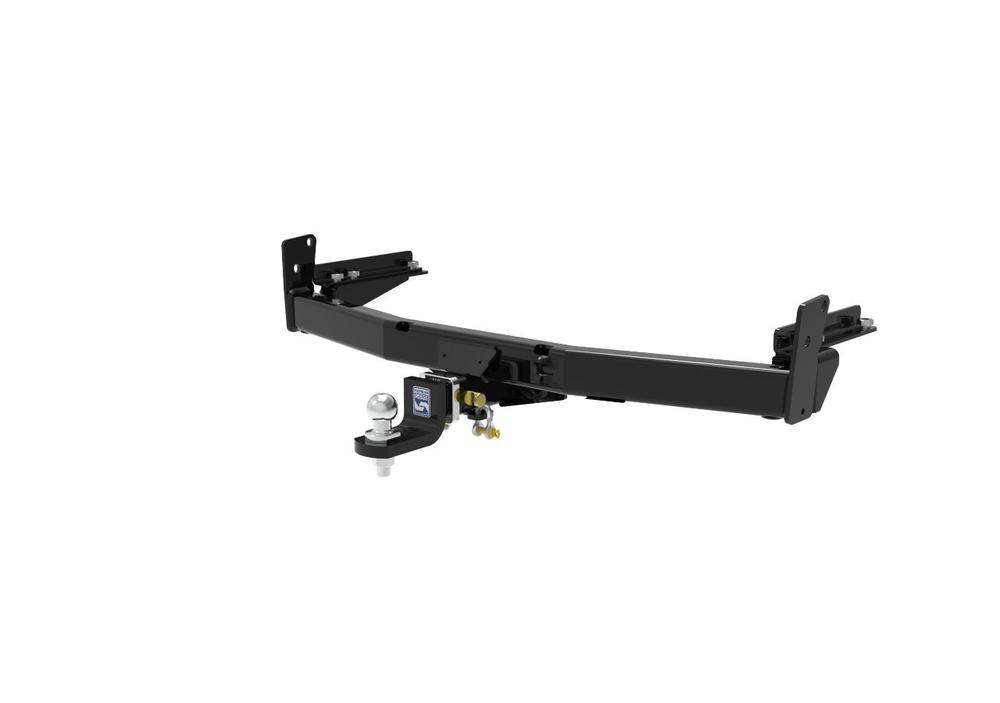

This towbar has a black powdercoat finish and a concealed design which hides the majority of the bar from view, with only a hitch receiver visible. The ball mount is an industry leading bolt-on tongue, made of thick high grade steel that attaches to the crossmember using two bolts and comes standard with rated D-shackles.



Safe Towing



Hayman Reese towbars are designed to be compatible with Weight Distribution systems and come standard with a tow ball.



Superior Construction



Hayman Reese towbars are designed to maximise towing ability. The 02023W Light Duty (Class 2) Towbar has been designed using advanced FEA (Finite Element Analysis) technology and tested in a dedicated NATA accredited Laboratory at Hayman Reese’s Melbourne Production Facility. This gives us the confidence to provide a lifetime warranty on the towbar for you as the original owner.



Whether you’re taking a trailer to the tip or the family for a bike ride, we'll keep you connected and get you gear there safely.

Towbar Rating 1600kg
Ball Weight 160kg
Bumper Cut Yes
Product Weight 15.2kg
SmartCODE Compatible No
Installation Required Yes
Finish Powder coated
Warranty limited lifetime warranty
Notes Reverse Park Assist (RPA) Solution - Use Part # 04943 for 7 Pin Flat 1200mm and # 04944 for 7 Pin Flat 1800mm.
Tail Length 1200mm
Colour black
Hitch Type Bolt-on Tongue
Exposed/Concealed Fitment Concealed
LUG 7669
